Dimensions & Packaging
Unit Size 220 × 196 × 163 mm
Package Size 265 × 250 × 210 mm
Carton Size 530 × 510 × 430 mm
Net / Gross Weight 1.82 kg / 2.3 kg
PCS / CTN 8
Carton G.W. 19 kg

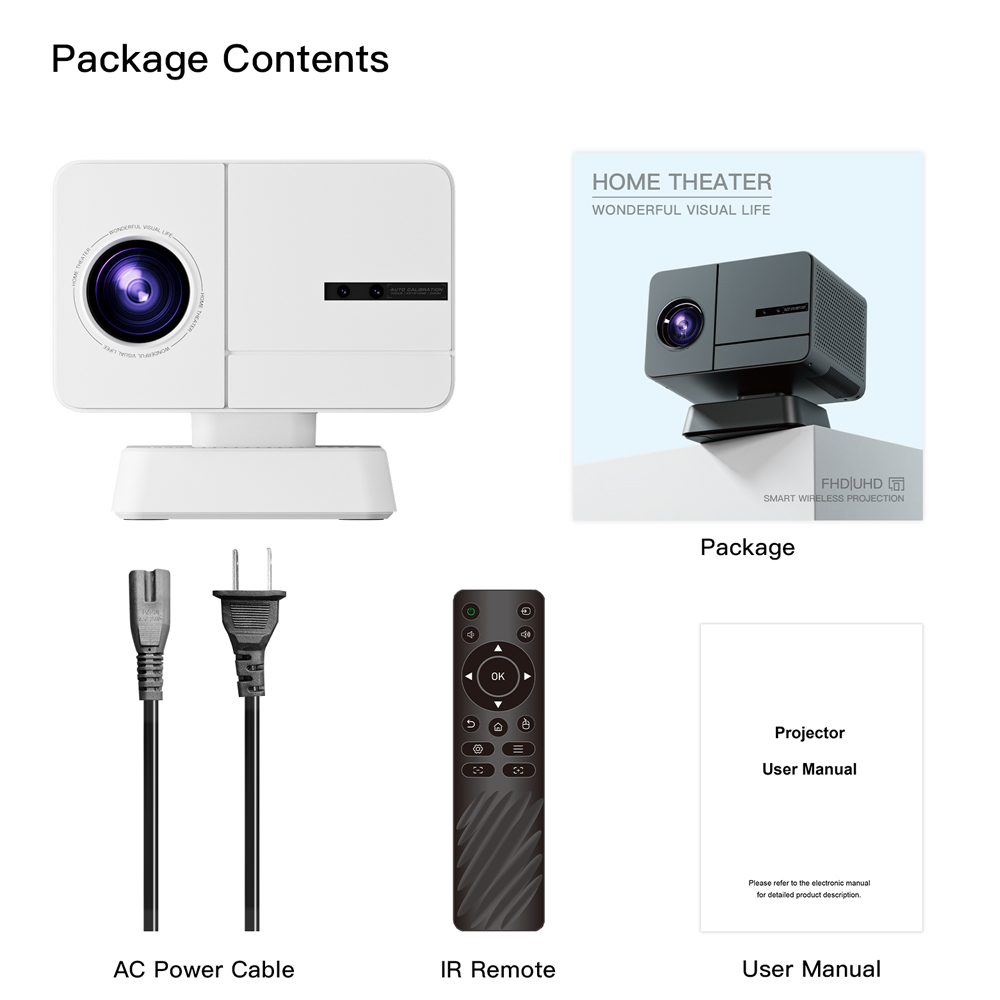

Accessories IR Remote Control × 1 | AC Power Cable × 1 | User Manual × 1
Main Product Parameters

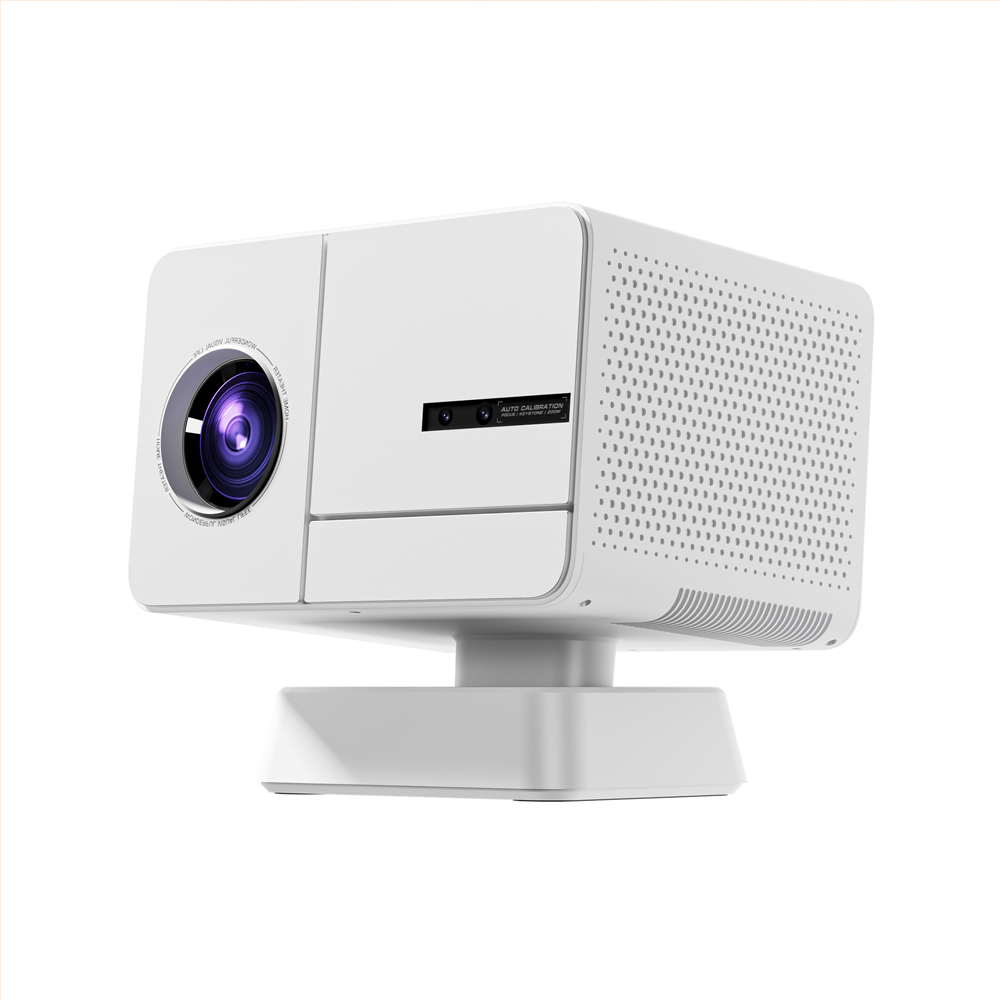

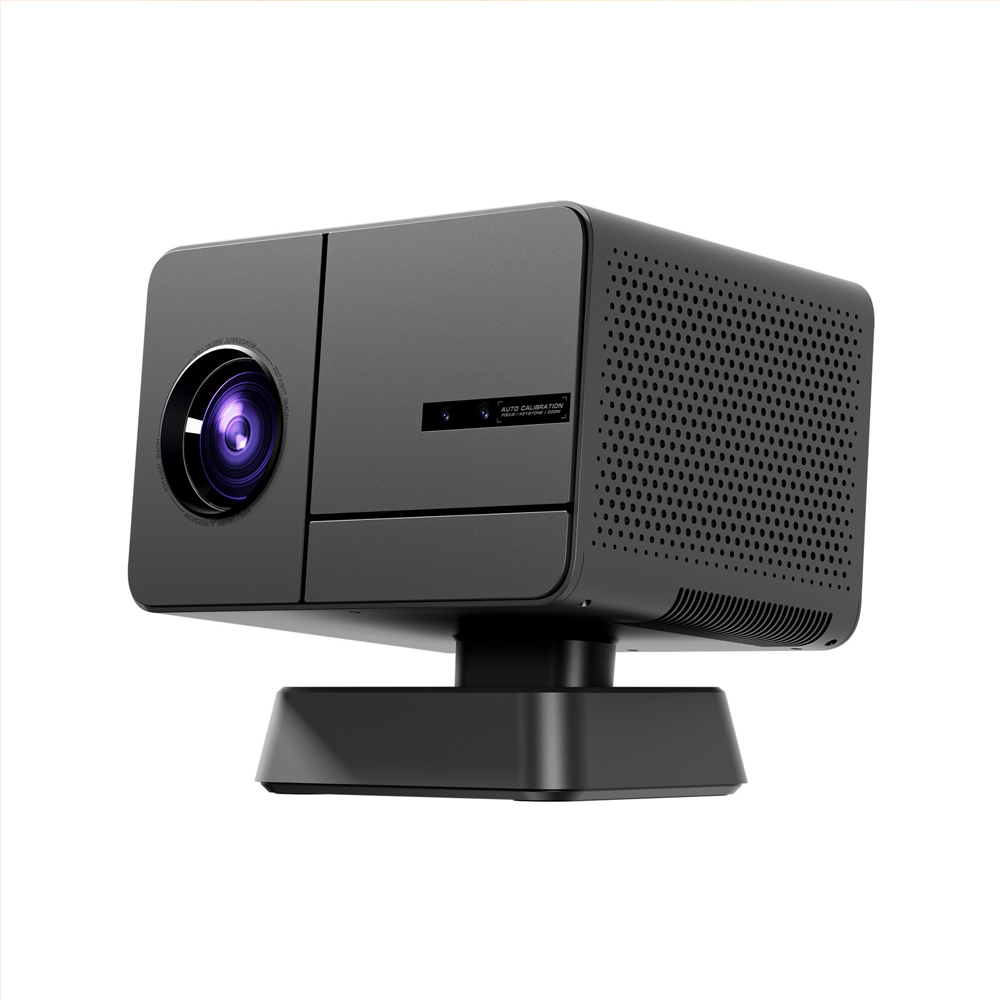

Product Name Multi-Function Projector
Model L50
SOC H723
CPU Quad-Core 64-bit ARM Cortex-A53
GPU ARM Mali-G31 | OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0
RAM 1 GB / 2 GB
ROM 8 GB / 16 GB / 32 GB
Video Engine H.265 MP, VP9 (4K@30fps) | H.264 BP/MP/HP (4K@30fps) | H.263,
MPEG-1/2/4, VP8, VC1, AVS/AVS+, AVS2 (1080P@60fps)
Main Interface Functions
AC Input 100 – 240 V
USB Port USB 2.0 HOST × 2
Display Port HDMI Input × 1
Audio Interface 3.5 mm AUX × 1
TF Interface TF × 1
IR IR Receiver × 2
Optical Parameters
Light Source LED
Physical Resolution 1920 × 1080P
Brightness 650 ANSI Lumens
Uniformity 68%
Contrast Ratio 4500:1
Throw Ratio 1.35:1
Projection Size 64 – 120 inch (optimal)
Aspect Ratio 4:3 / 16:9 / 16:10
Focus Mode Auto Focus
Noise < 35 dB (@ 1 m)
Speaker 4Ω 5W
Power Consumption 100 W (Max)
Service Life: 30,000 hours
Operating / Storage Temp: -10°C ~ 60°C / -20°C ~ 70°C
Storage Humidity: 10% ~ 80%
System Parameters
OS Android 14
UI CHIHI Launcher
WLAN Wi-Fi 6 (2.4G / 5G) | Bluetooth 5.0+
Languages Chinese, English, Russian, Spanish, and more
Projection Mode Front / Rear × Floor / Ceiling
Keystone 4-Point Correction
Screen Zoom 60% – 100%
Wireless Screen Supported
